Huaxu Energy manufactures small and medium size solar panels to generate sustainable power for your portable electric power and battery charging applications.

Incorporating epoxy resin encapsulated solar cells, PET laminated solar cells and folding solar cells, the power packs will provide an excellent choice for applications that require lightweight, flexible, durable, clean power.

With more than 10 years experience, we deeply understand what customer’s requirements.

Huaxu Energy will be always you RELIABLE supplier of solar panels.

Username:
Password:

·PET solar panel
·Epoxy solar panel
·Glass solar panel
·Semi-flexible solar panel
·Solar charger(Badger)
·Solar charger(Ultra)
·Solar charger(Dual)
·12V battery charging kits

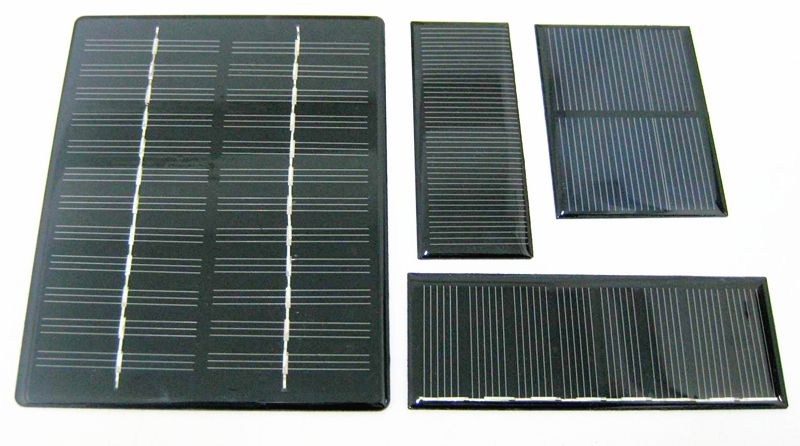

PET laminated solar panel

PET laminated solar panel





PET laminated solar panel are widely used in solar powered devices like solar educational kits, solar roadstud lights, portable solar charger, solar desk readlight, etc;

All our standard PET laminated solar panel are certified by CE, Rohs and all raw material of small solar panels with TUV/IEC61215/SGS certificates.



0.5V 450mA PET Laminated Solar Panel

  • Monocrystalline Blue Solar Cell
  • Peak Voltage (Vmp): 0.5V
  • Open Circuit Voltage (Voc): 0.6V
  • Peak Current (Imp): 450mA
  • Short Circuit Current (Isc): 460mA
  • Maximum Power (Pmax): 0.225W
  • Dimensions: 60mm x 30mm x 2.6mm (LxWxD)

1V 380mA PET Laminated solar panel

  • Monocrystalline Solar Cell
  • Color: Black
  • Peak Voltage (Vmp): 1V
  • Open Circuit Voltage (Voc): 1.2V
  • Peak Current (Imp): 380mA
  • Short Circuit Current (Isc): 390A
  • Maximum Power (Pmax): 0.38W
  • Dimensions: 55m x 55mm x 2.6mm (LxWxD)

1.5V 500mA PET Laminated solar panel

  • Monocrystalline Blue Solar Panel
  • Peak Voltage (Vmp): 1.5V
  • Open Circuit Voltage (Voc): 1.8V
  • Peak Current (Imp): 500mA
  • Short Circuit Current (Isc): 510mA
  • Maximum Power (Pmax): 0.75W
  • Dimensions: 90mm x 70mm x 2.6mm (LxWxD)

2V 500mA PET Laminated solar panel

  • Polycrystalline Black Solar Cell
  • Peak Voltage (Vmp): 2V
  • Open Circuit Voltage (Voc): 2.4V
  • Peak Current (Imp): 500mA
  • Short Circuit Current (Isc): 510mA
  • Maximum Power (Pmax): 1W
  • Dimensions: 160mm x 55mm x 2.6mm (LxWxD)

2.5V 180mA PET laminated solar panel

  • Monocrystalline Black Solar Cell
  • Peak Voltage (Vmp): 2.5V
  • Open Circuit Voltage (Voc): 3V
  • Peak Current (Imp): 180mA
  • Short Circuit Current (Isc): 190mA
  • Maximum Power (Pmax): 0.45W
  • Dimensions: 69mm x 49mm x 2.6mm (LxWxD)

3V 1000mA PET laminated solar panel

  • Monocrystalline Black Solar Cell
  • Peak Voltage (Vmp): 3V
  • Open Circuit Voltage (Voc): 3.6V
  • Peak Current (Imp): 1000mA
  • Short Circuit Current (Isc): 1050mA
  • Maximum Power (Pmax): 3W
  • Dimensions: 170mm x 130mm x 2.6mm (LxWxD)

4V 135mA PET laminated Solar Panel

  • Monocrystalline Solar Cell
  • Peak Voltage (Vmp): 4V
  • Open Circuit Voltage (Voc): 4.8V
  • Peak Current (Imp): 135mA
  • Short Circuit Current (Isc): 145mA
  • Maximum Power (Pmax): 0.54W
  • Dimensions: Diameter 93mm x 2.8mm (LxWxD)
  • 5V 250mA PET laminated solar panel

    Polycrystalline Black Solar Cell

    • Peak Voltage (Vmp): 5V
    • Open Circuit Voltage (Voc): 6V
    • Peak Current (Imp): 250mA
    • Short Circuit Current (Isc): 260mA
    • Maximum Power (Pmax): 1.25W
    • Dimensions: 155mm x 58mm x 2.6mm (LxWxD)

    6V 900mA PET laminated solar panel

    • Monocrystalline Black Solar Cell
    • Peak Voltage (Vmp): 6V
    • Open Circuit Voltage (Voc): 7.2V
    • Peak Current (Imp): 900mA
    • Short Circuit Current (Isc): 980mA
    • Maximum Power (Pmax): 5.4W
    • Dimensions: 160mm x 220mm x 2.6mm (LxWxD)

9V 235mA PET laminated solar panel

  • Monocrystalline Black Solar Cell
  • Peak Voltage (Vmp): 9V
  • Open Circuit Voltage (Voc): 10.8V
  • Peak Current (Imp): 235mA
  • Short Circuit Current (Isc): 250mA
  • Maximum Power (Pmax): 2.1W
  • Dimensions: 117mm x 130mm x 2.6mm (LxWxD)



18V 100mA PET laminated solar panel

  • Monocrystalline Black Solar Cell
  • Peak Voltage (Vmp): 18V
  • Open Circuit Voltage (Voc): 21.6
  • Peak Current (Imp): 100mA
  • Short Circuit Current (Isc): 105mA
  • Maximum Power (Pmax): 1.8W
  • Dimensions: 115mm x 128mm x 2.6mm (LxWxD)





Features:

  • Mini PET laminated solar panels are simple to install or add to your existing product.
  • Mini PET laminated solar module use crystalline solar cells, thereby reducing the space required for installation.
  • Sealed against corrosion within a hard highly polished  polymer encapsulant.
  • Ready to use, they require no frame or special modifications.
  • Can be used as remote charging source when used with a plug on such consumer and military applications as backpacks, vehicle dashboards, etc.
  • Available in different volt nominal configurations
