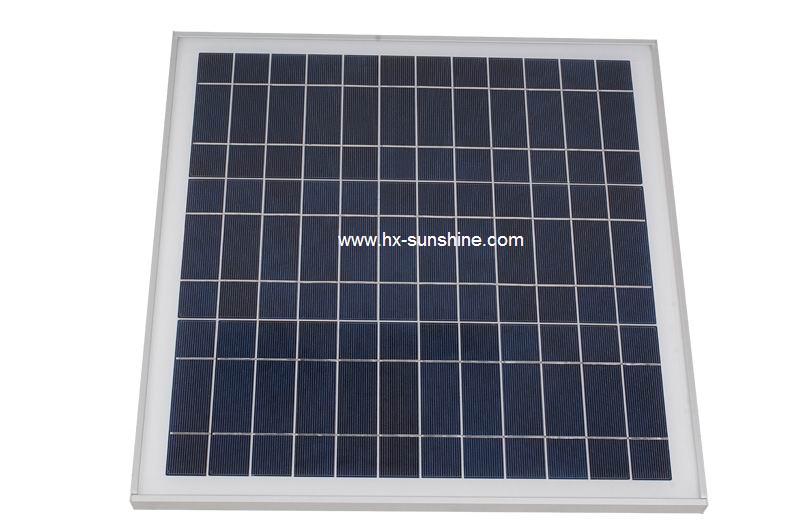

30W 18V Solar panel

30W solar panel Huaxu Energy

30W polycrystalline solar panel

Model HX-30(Poly)30W
Encapsulation Glass/EVA/Cells/EVA/TPT
Size&Number of cells 156mm×24mm 36pcs(2×18pcs)
Maximum power(  Wp) 30Wp
Maximum power voltage(Vmp) 18.00V
Maximum power current(Imp) 1.67A
Open circuit voltage(Voc) 21.6V
Short circuit current(Isc) 1.82A
Model size(mm) 445*535*25 mm
Weight(Kg 3.5Kg
Nominal Operating Cell Temperature(NOCT)

48°C to ±  2°C
