6V 300mA solar cell

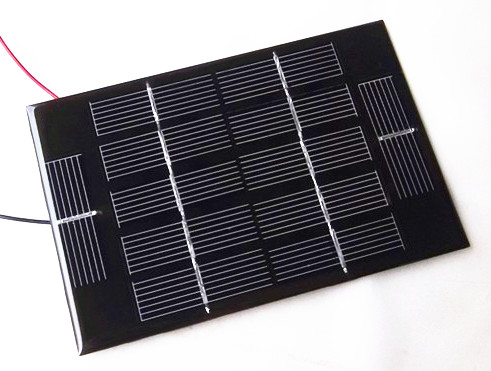

6V 300mA PET lamination solar cell

  • Model: HX153-101P
  • Monocrystalline Solar Cell
  • Peak Voltage (Vmp): 6V
  • Open Circuit Voltage (Voc): 7.2V
  • Peak Current (Imp): 300mA
  • Short Circuit Current (Isc): 330mA
  • Dimensions: 153mm x 101mm x 2.5mm (LxWxD)

This small easy-to-use PET lamination solar cell would be a great addition to your next solar powered project. This small solar cell provides approximately 3 V and 6V DC in direct sunlight at up to 2.2W. Multiple units can be chained serial and/or parallel to increase voltage and current.

Processing for options: PET laminating, epoxy coated, glass laminating.

Application: Our epoxy sealed small solar panel and PET laminated mini solar panel can be used in solar toys, solar lawn light, solar charger, solar torch, solar flashlight  and more and more other electrical products powered by solar.
