5.5V 140mA solar cell

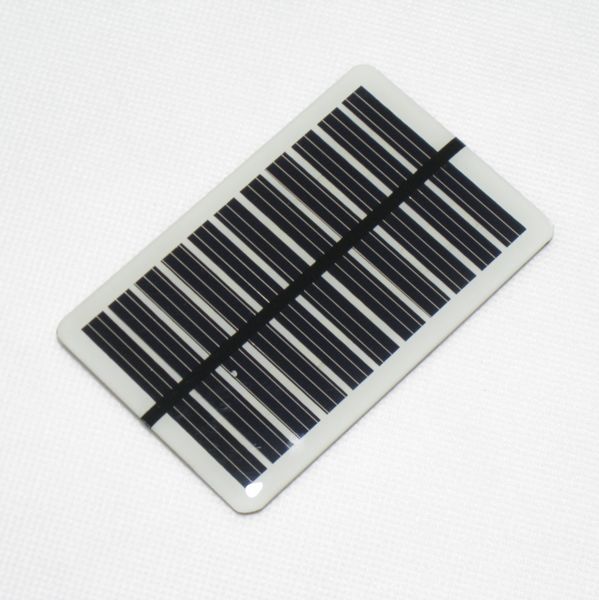

5.5V 140mA Epoxy Resin Encapsulated Solar Cell

  • Model: HX56-98E
  • Monocrystalline Solar Cell
  • Peak Voltage (Vmp): 5.5V
  • Open Circuit Voltage (Voc): 6.5V
  • Peak Current (Imp): 140mA
  • Short Circuit Current (Isc): 155mA
  • Dimensions: 56mm x 98mm x 2.5mm (LxWxD)

Low voltage epoxy resin encapsulated solar cells are ideal for OEM, project development, hobbyists and school or university project.

Layout of epoxy resin solar cell as below
1. Epoxy resin
2. Solar cell(mono crystalline & poly crystalline)
3. PCB
It is more suitable for solar toys, solar lights.

epoxy resin solar cell

Processing: Epoxy resin encapsulated solar cell

All our standard epoxy resin solar panel are certified by CE, and all raw material of epoxy resin encapsulated solar panels with TUV/IEC61215/SGS certificate.
