4V 100mA solar cell

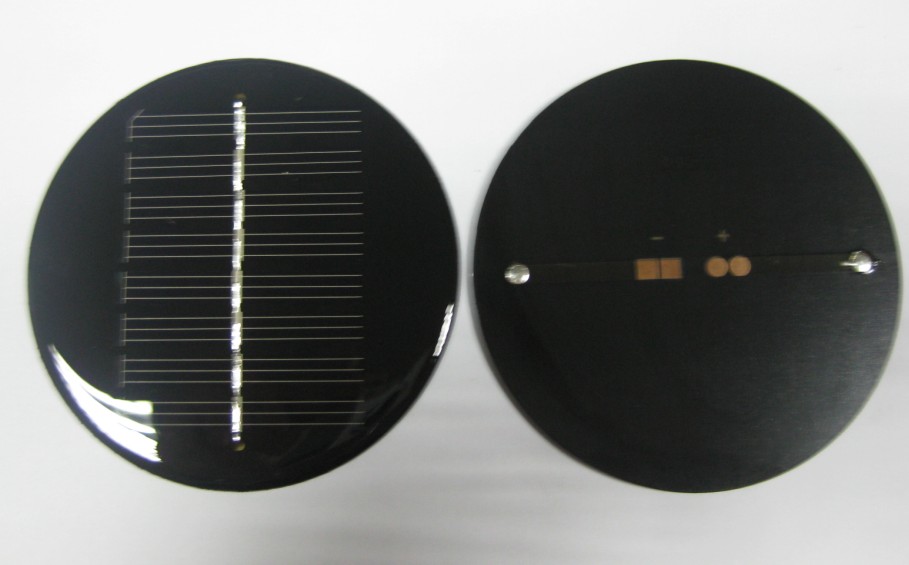

4V 100mA Epoxy resin solar cell

  • Model: HX-D92.6E
  • Monocrystalline Black Solar Cell
  • Peak Voltage (Vmp): 4V
  • Open Circuit Voltage (Voc): 4.8V
  • Peak Current (Imp): 100mA
  • Short Circuit Current (Isc): 110mA
  • Dimensions: Diameter 92.6 x 2.8mm
Low power solar panel called epoxy resin encapsulated solar cell, which is sticked together by epoxy resin glue at a termperature of 50~60 degrees, and you will see the expoxy resin coated solar panel have 3 layers,
1. Epoxy resin
2. Cell
3. PCB
It is more suitable for solar toys.
epoxy resin solar cell
Processing for options: Epoxy resin encapsulated, Epoxy resin coated.

Application: Epoxy resin sealed small solar cell widely used in solar toys, solar lawn light, solar charger, solar devices etc.
