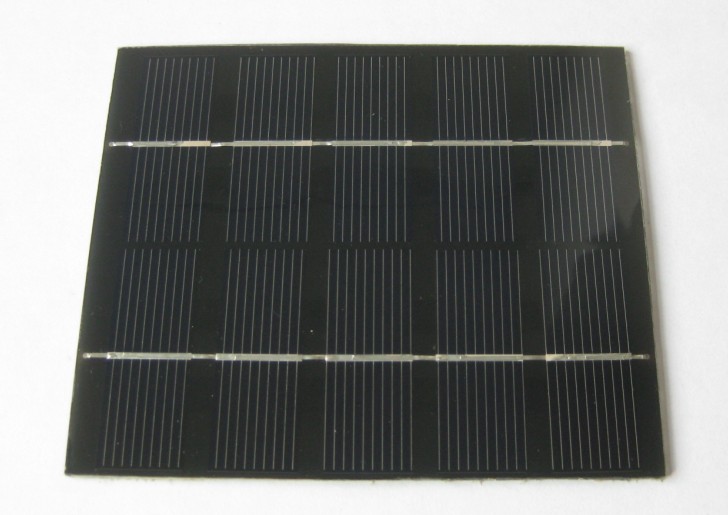

5V 300mA solar cell

5V 300mA UV resistance PET laminated solar panel

  • Model: HX115-130P
  • Monocrystalline Black Solar Cell
  • Peak Voltage (Vmp): 5V
  • Open Circuit Voltage (Voc): 6V
  • Peak Current (Imp): 300mA
  • Short Circuit Current (Isc): 320mA
  • Dimensions: 115mm x 130mm x 2.8mm (LxWxD)

This small easy-to-use PET lamination solar cell would be a great addition to your next solar powered project. This solar cell provides approximately 5V DC in direct sunlight at up to 1.5W. Multiple units can be chained serial or parallel to increase voltage and current.

PET Laminated small solar panel which is laminating by a machine at a temperature of 135 degree, then all the material will be melted together, you will see the layouts as below,
1. PET
2. EVA
3. Solar cell
4. EVA
5. PCB
it is more suitable for outdoor solar lights.

Highlights:
UV resistance solar panel
Humidity resistance
Scratch resistance
Consistent textured surface
Attractive apperance


Application: Solar toys, solar lawn light, solar charger, solar torch, solar flashlight etc.
