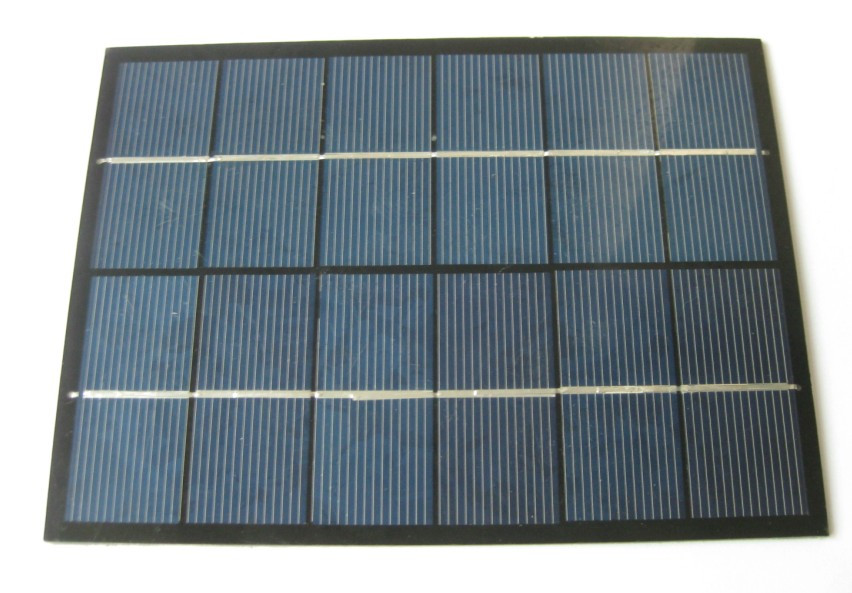

3V 750mA PET laminated solar panel, UV protected & Scratch resistance solar panel
- Model: HX115-115P
- Polycrystalline Blue Solar Cell
- Peak Voltage (Vmp): 3V
- Open Circuit Voltage (Voc): 3.6V
- Peak Current (Imp): 750mA
- Short Circuit Current (Isc): 825mA
- Dimensions: 115mm x 115mm x 2.5mm (LxWxD)
Hightlights of solar panel
*Consistent textured surface
This small easy-to-use PET lamination solar panel would be a great addition to your next solar powered project. This small solar cell provides approximately 3 V and 6V DC in direct sunlight at up to 2.2W. Multiple units can be chained serial and/or parallel to increase voltage and current
PET laminated small solar panel consisting of PET, EVAs, Solar cell and FR-4-PCB, it is laminated by machine at a temperature of 135 degree, then all the material will be melted together, it is more suitable for outdoor solar lights.
There is another type mini solar panel called epoxy resin encapsulated solar panel, which is sticked together by epoxy resin glue at a temperature 50~60 degree, you will see the epoxy coating panel have three layers,
1. Epoxy resin
2. Solar cell
It is more suitable for solar toys.
Application: PET type small solar cell and epoxy resin mini solar cell can be used in solar lights, solar education kits, solar devices etc.
