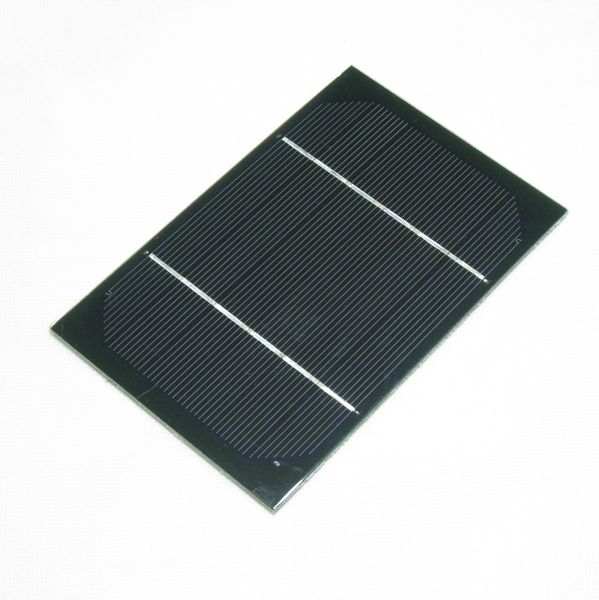

3V 835mA solar cell

PET lamination solar panel, small solar panel

2.5W/3V PET laminated solar panel, UV resistance & Scratch resistance solar panel

Model:HX170-110P
Monocrystalline Solar Cell
Peak Voltage (Vmp): 3V
Open Circuit Voltage (Voc): 3.6V
Peak Current (Imp): 835mA
Short Circuit Current (Isc): 900mA
Dimensions: 170mm x 110mm x 2.8mm (LxWxD)

Highlights of Huaxu Energy's solar panel
*UV resistance solar panel
*Humidity resistance
*Scratch resistance
*Consistent textured surface
*Attractive appearance

Low voltage PET laminated solar panel consisting of PET, EVAs, Solar cell and FR-4-PCB, it is laminated by machine at a temperature of 135 degree, then all the material will be melted together.Life time of PET laminated solar cell will be more than 3 years, it is waterproof and resistant to all outdoor conditions, so it is more suitable for solar outdoor lights.
PET laminated solar cell

There is another type low power solar panel called epoxy resin encapsulated solar panel, which is sticked together by epoxy resin glue at a temperature 50~60 degree, you will see the epoxy coating solar panel have 3 layers,
1. Epoxy resin
2. Solar cell
3. PCB
It is more suitable for solar toys.
epoxy resin solar cell
