4V 110mA solar cell

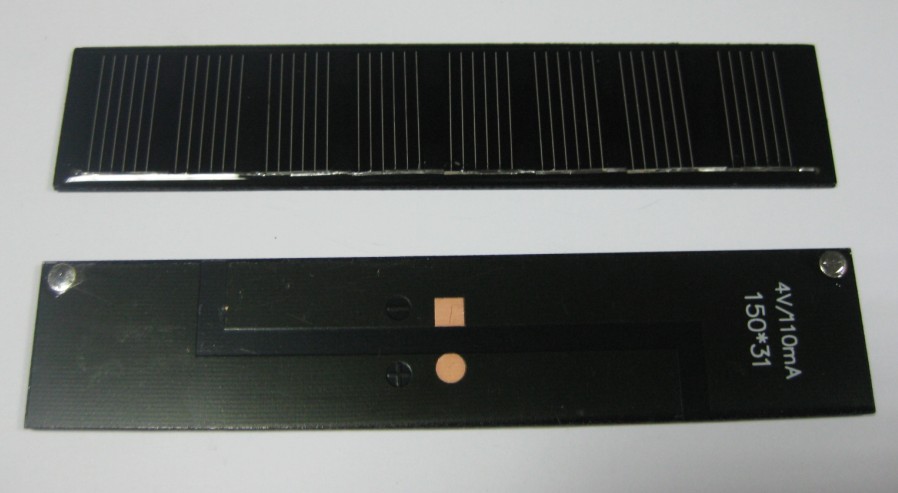

4V 110mA Epoxy resin solar panel or Epoxy resin encapsulated solar cell

*Monocrystalline black solar cell
*Peak voltage(Vmp): 4V
*Open circuit voltage(Voc):4.8V
*Peak current(Imp):110mA
*Short circuit current(Isc):120mA
*Dimension: 150mmx31mmx2.5mm(LxWxD)

Low power solar module called epoxy resin encapsulated solar panel, which is sticked together by epoxy resin glue at a termperature of 50~60 degrees, and you will see the expoxy resin coated solar panel have 3 layers,
1. Epoxy resin
2. Solar cell
3. PCB
It is more suitable for solar toys and solar lights.
epoxy resin solar cell

Processing for options: Epoxy resin encapsulated , Epoxy resin sealed

Application: Epoxy resin sealed small solar panel can be used in solar toys, solar garden light, solar power bank, solar flashlight etc.
